Additional information
- Hign-concerned Chemical: None
- Oxygen Supply: Above 5L/min
- Formaldehyde Removal Rate: 99.90%
- Benzene Removal Rate: 99.90%
- Wind Speed: Standard
- Dimension: other
- Power Supply: Alternating Current
- Noise: ≤50dB
- Style: Air Purifier
- Application: 4000m3 air/40 tons of water
- Coverage Area: >61㎡
- Capacity (CFM): A
- Power Source: A.C. Source
- Usage Condition: Household
- Anion Density: no lonizer
- Certification: ce,EMC,CE
- Type: Ozone Generator
- Installation: Portable
- Function: Sterilize
- Voltage (V): 100-240V
- Power (W): 400w
- Air Volume: 400m³/h
- Brand Name: Pinus longaeva
- PINUS LONGAEVA Model: PL-H2
- Origin: Mainland China
- Product name: H2 ozone machine
- Product model: PL-H2
- Power: 400w
- Ozone module: quartz tube ozone generator kit
- Ozone output: 40g/h (adjustable)
- Air source flow: 40L/min
- Air source pressure: 19-20kpa
- Oxygen input joint: built-in
- Product size: 34*25*78cm
- Net weight: 18kg
Our test equipment:
AC voltage regulator, DC voltage regulator, voltage stabilizer, LCR digital bridge tester, intelligent program-controlled frequency conversion power supply, electrical parameter meter, ozone concentration analyzer, oxygen cylinder, oxygen machine, air compressor, oil-water separator, pressure regulating valve, flow meter, ambient temperature and humidity meter, aging test bench…
AC200V-AC240V, we will set: AC240V 50HZ for you.
AC100V-AC130V, we will set: AC130V 60HZ for you.
If the local voltage or frequency is special, when you order our products, you can leave a message to us.
.
.
.
Portable, high ozone concentration, small size, low temperature rise, more efficient, longer service life.
.
.
.
.
.
.
.
.

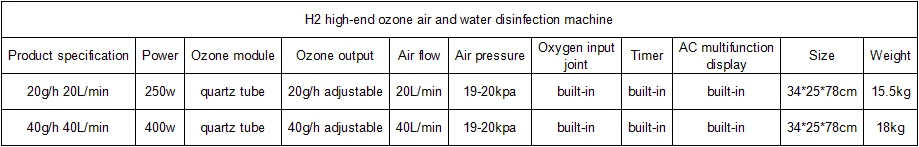

H2 high-end ozone disinfection machine:
Product model: PL-H2.
Timer: cycle timer / microcomputer timer. (cycle timer is simpler, microcomputer timer is more professional)
AC multi-function display: it can display voltage, current, power, power consumption, frequency, power factor.
Cooling fan: 15050 15cm AC cooling fan. (pure copper wire core, ball bearing)

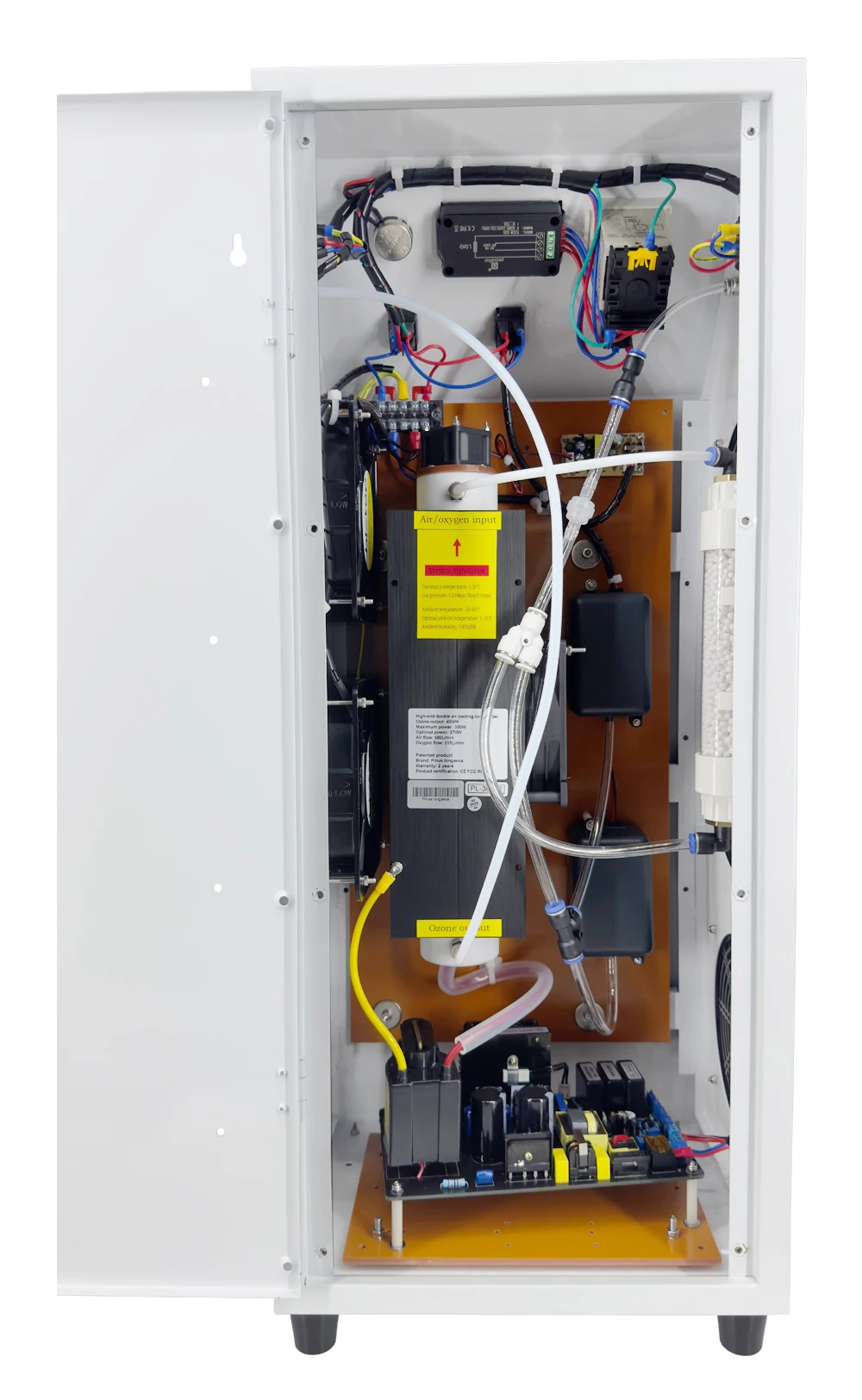

Ozone module: black adjustable ozone generator kit, high ozone concentration, small size, larger heat dissipation area, low temperature rise, more efficient, longer service life. with internal electrode heat sink and internal electrode cooling fan.
Air pump: low noise, low vibration, low energy consumption, high output, high pressure, long life.
Ground wire: the 15cm cooling fan and the shell are connected with a ground wire to avoid inductive electricity on the shell, in accordance with European standards.

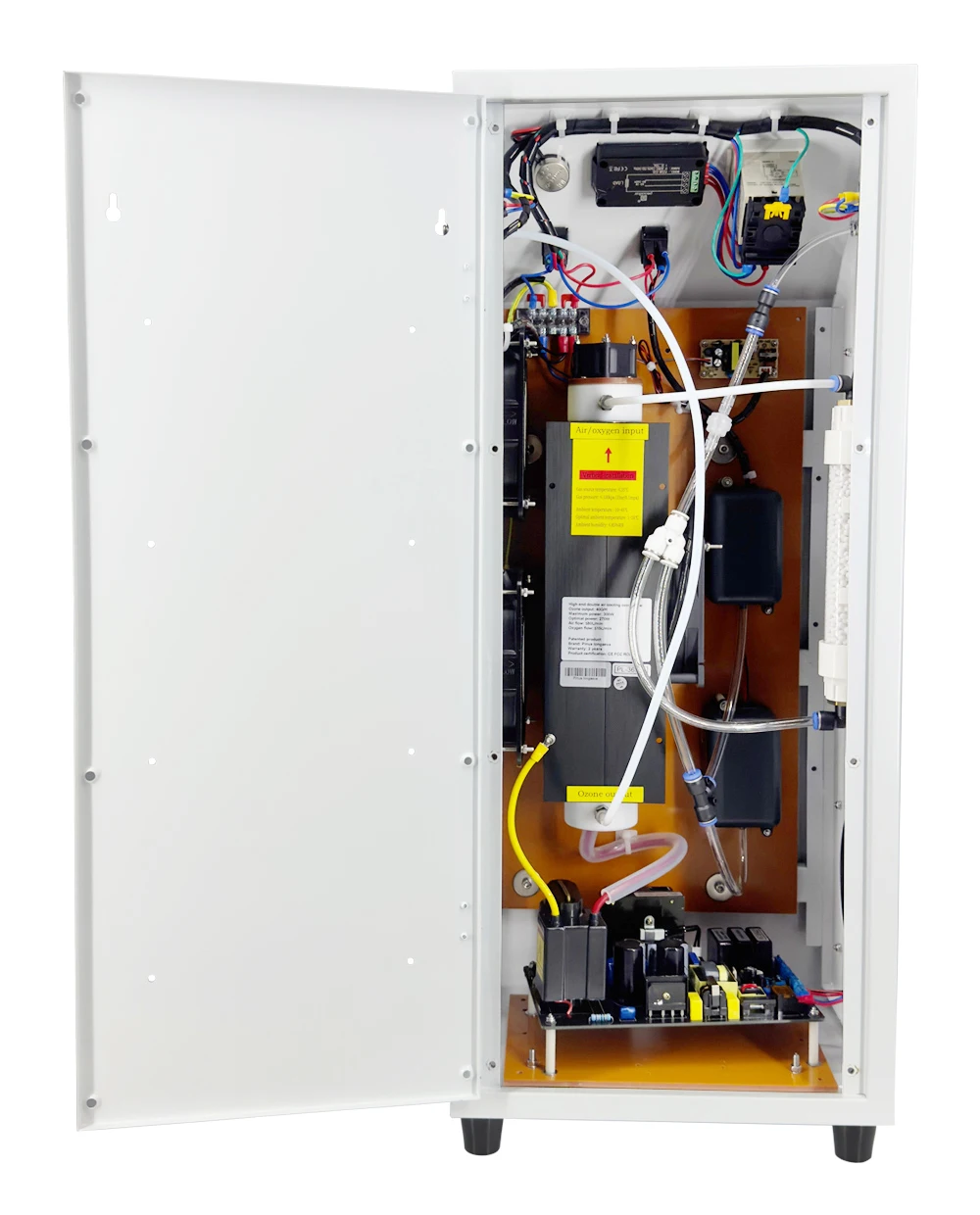

Bakelite board: the ozone generator kit and air pump are mounted on the bakelite board to avoid generating induced electricity, and modular production can improve installation efficiency.
Installation distance: the ozone PSU is more than 8cm away from the nearest metal plate/ozone tube/other electrical appliance(40g/h), standard installation, reduced interference.

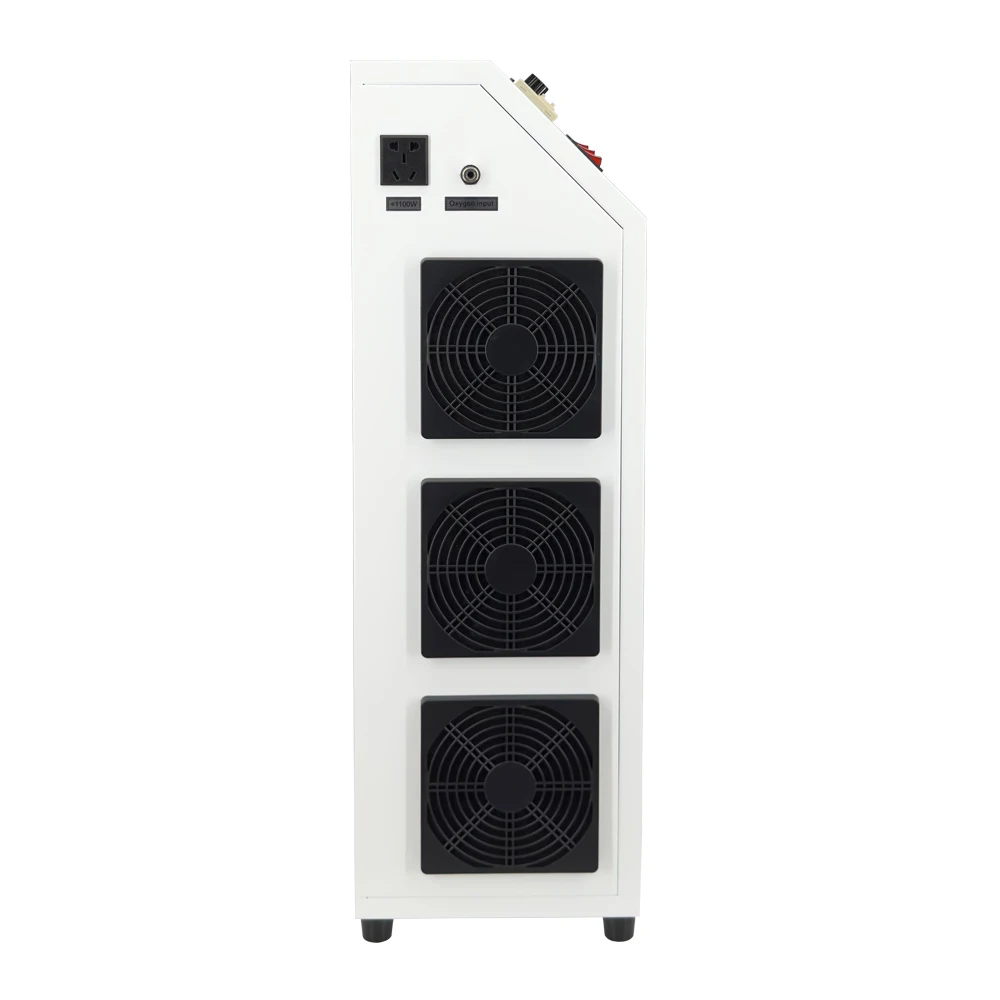

Efficient cooling (40g/h):
2pcs 15cm customized cooling fans, (20g/h 1pc)
1pcs 12cm customized cooling fans, (20g/h 1pc)
1pc 4cm custom high speed internal electrode cooling fan,
pure copper wire core, ball bearing, efficient cooling, low temperature rise, high ozone concentration.
White metal baking paint shell: 1mm thickened metal shell + white baking paint shell, more solid, more beautiful, anti-fingerprint, wear-resistant.
Handle, wheel: we have reserved holes for handles and wheels. if you need, please contact us, can be customized.

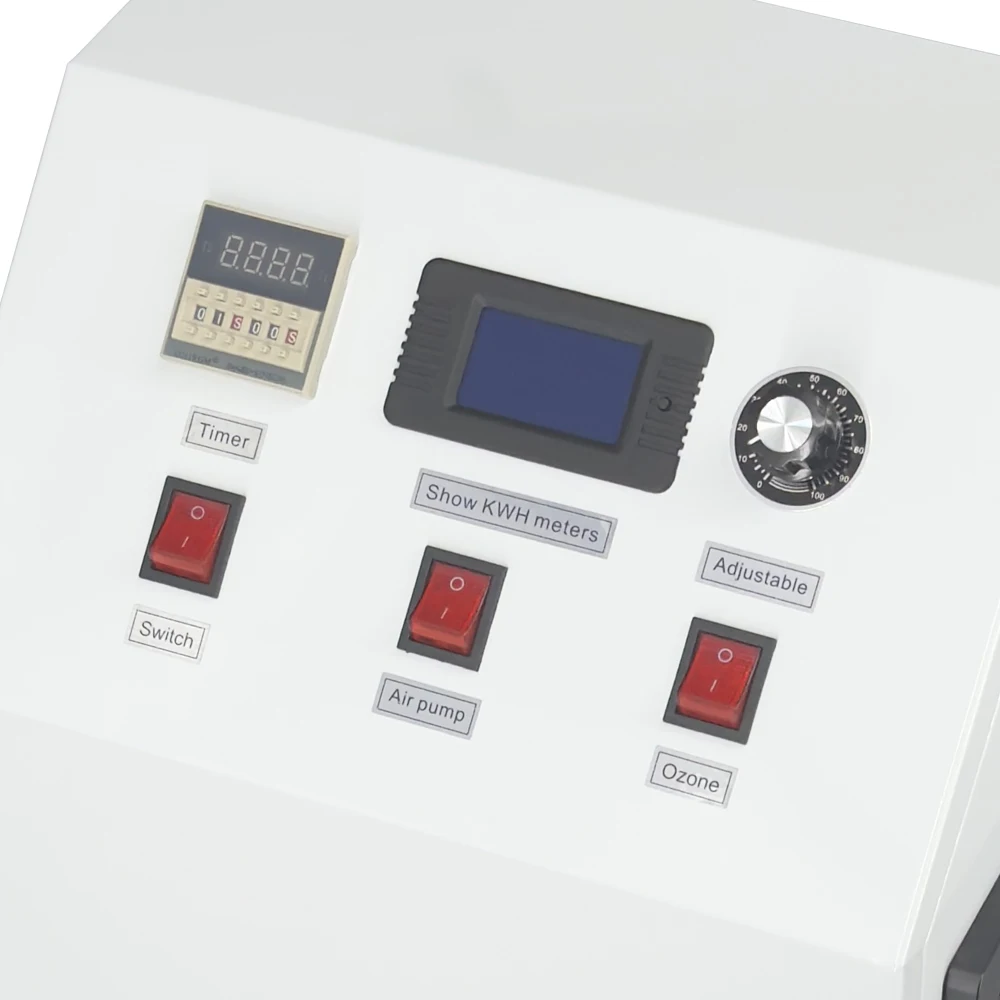

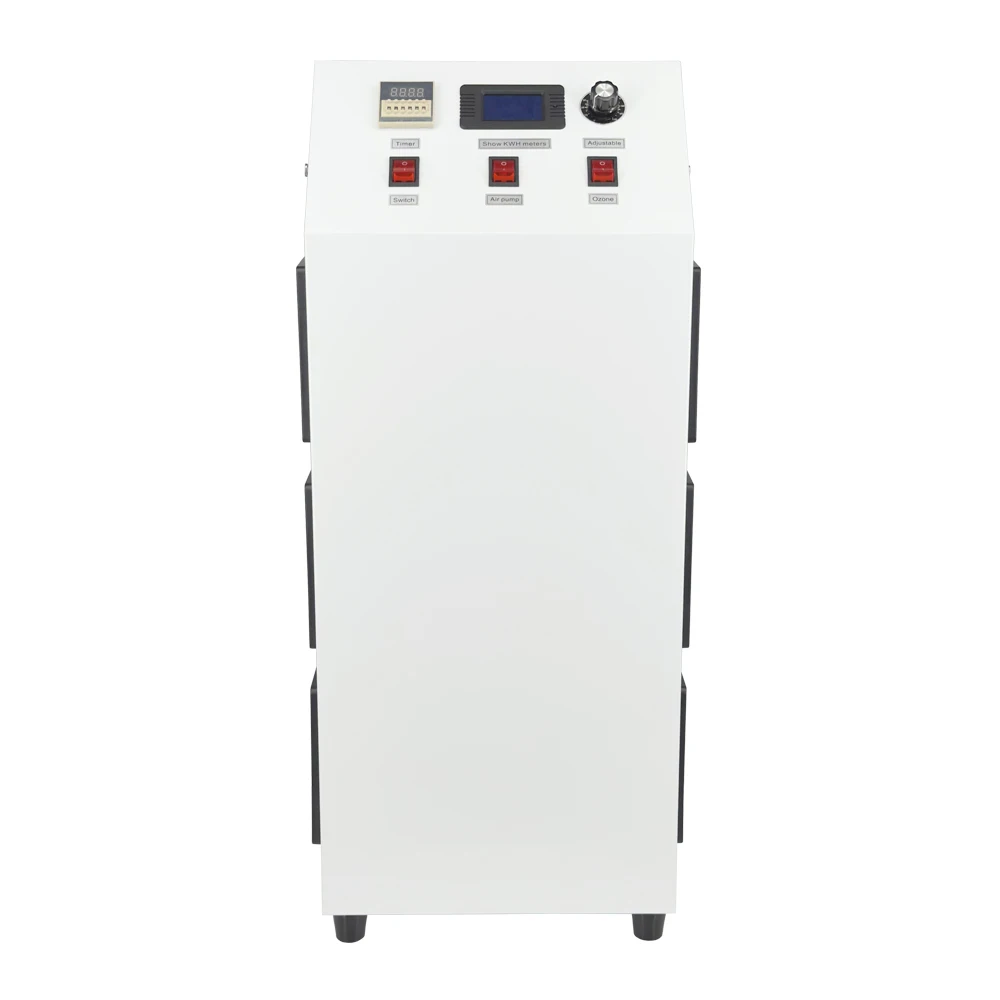

Panel and switch: reasonable design and layout, in order to make your operation easier, if you need a high current waterproof switch, please let us know, +10 dollars/3pcs.

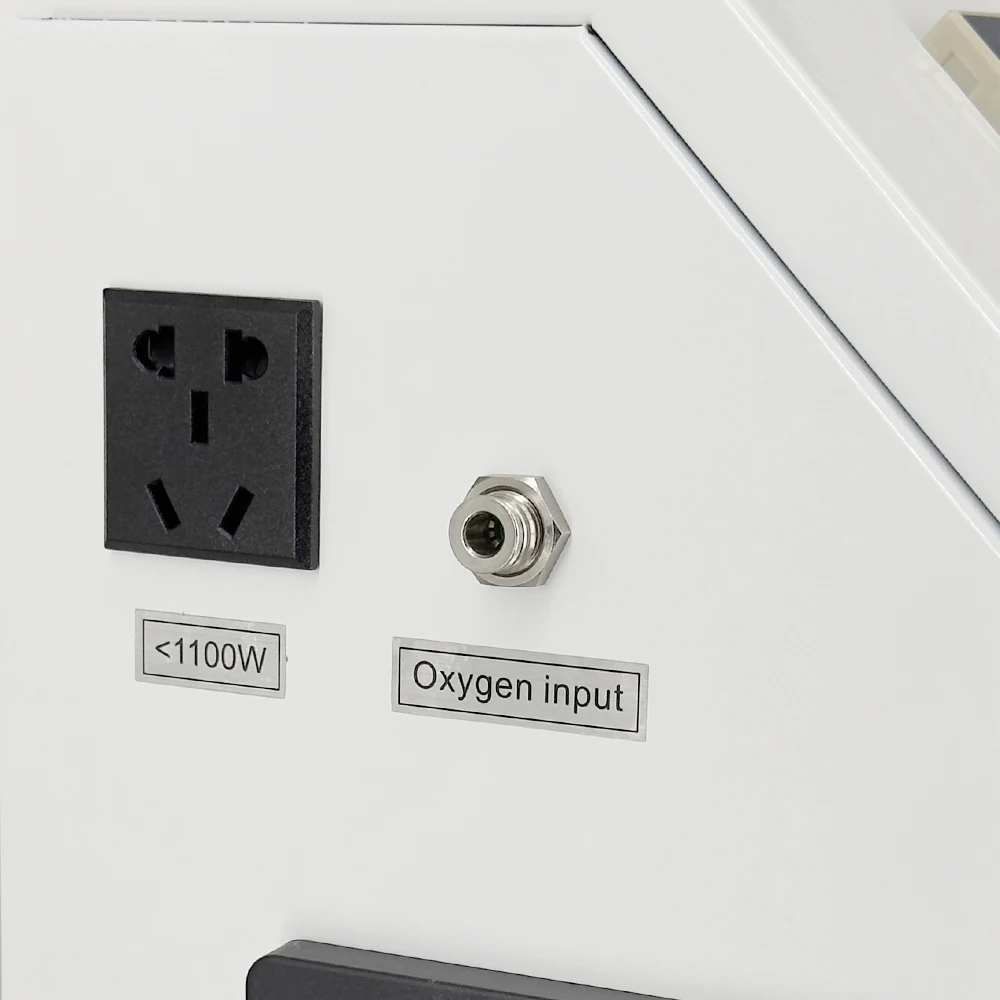

Output socket (<1100w): it can be connected to the oxygen machine, and the timer of the ozone machine can control both the ozone machine and this socket.
Oxygen input: it can be connected to your air source/oxygen machine/oxygen cylinder. (304 stainless steel quick joint, outer diameter 6mm)
Oxygen source pressure: ≤100kpa. (1bar/0.1mpa)
Socket: built-in additional 1pc 10A fuse.

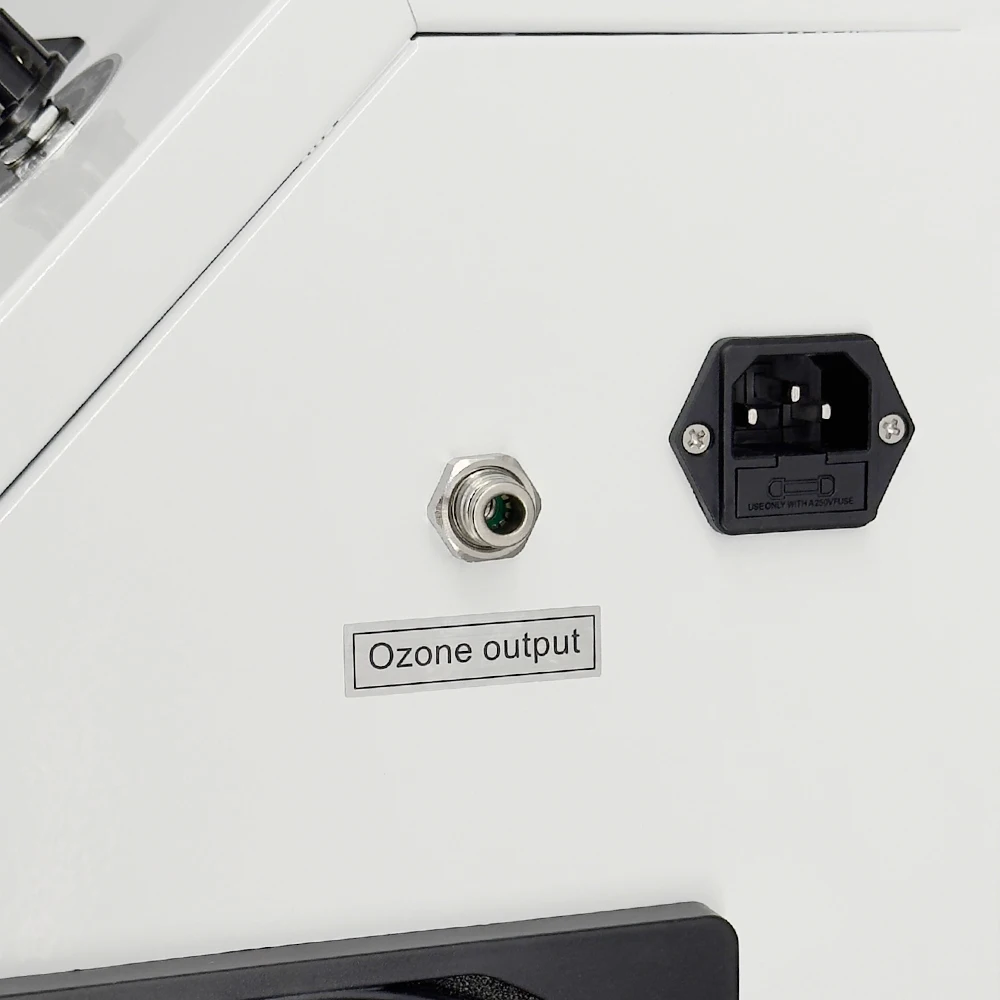

Ozone output: it can be connected to a 4*6mm teflon tube. (304 stainless steel quick joint, outer diameter 6mm)
Screws and nuts: 304 stainless steel.
LOGO: if you need us to print your LOGO, please contact us.
.
Gas source temperature: ≤35℃
Ambient temperature: -10~45℃
Optimal ambient temperature: 1-20℃
Environmental humidity: ≤85%RH
.
Patented product
Brand: Pinus longaeva (we can print your logo and paste it on the ozone machine)
Product certification: CE FCC ROHS
Product application: air purification and water sterilization
Service life / Warranty: more than 20000 hours / 2 years
Customized: can be customized
.
Packaging list:
1pc ozone machine, 1pc pure copper power cord, 2m 4*6mm teflon tube, 1pc air stone, 2m 4*6mm PU tube, 2pcs plastic reducer union(6-8mm 6-10mm).
.
.

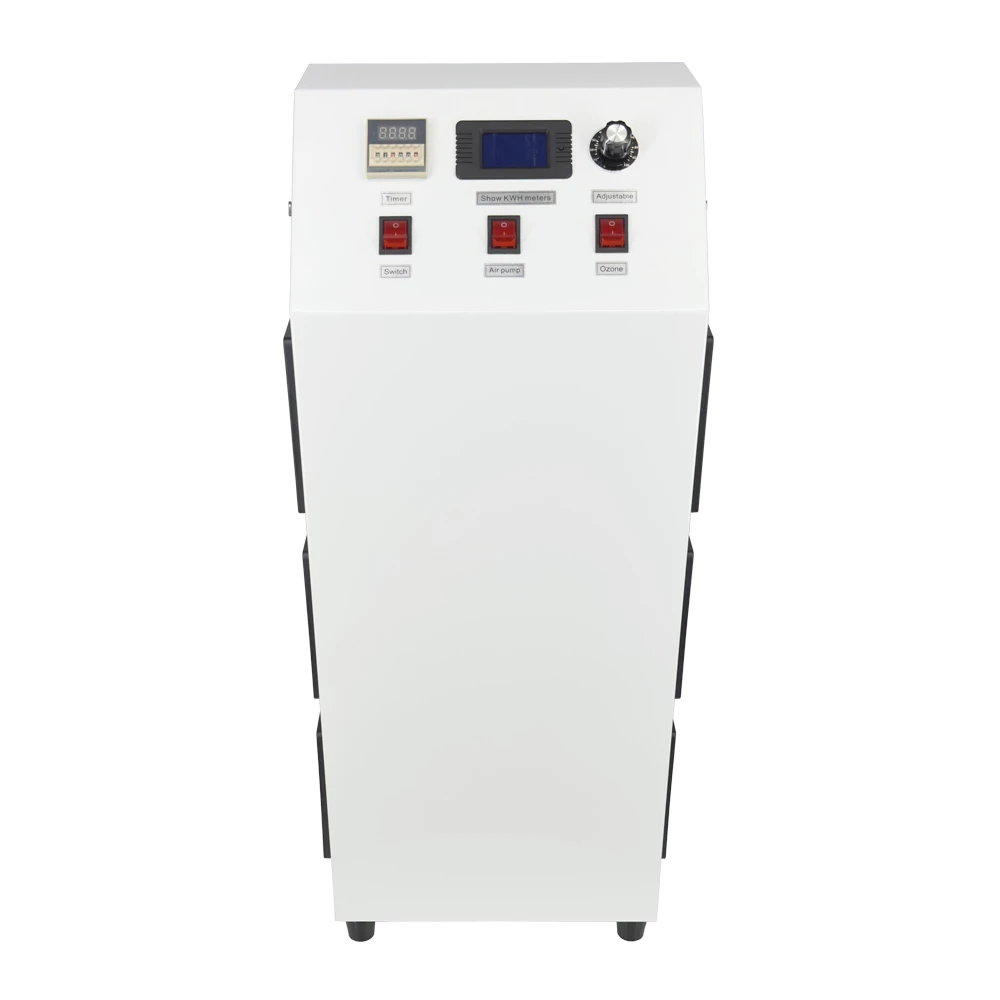

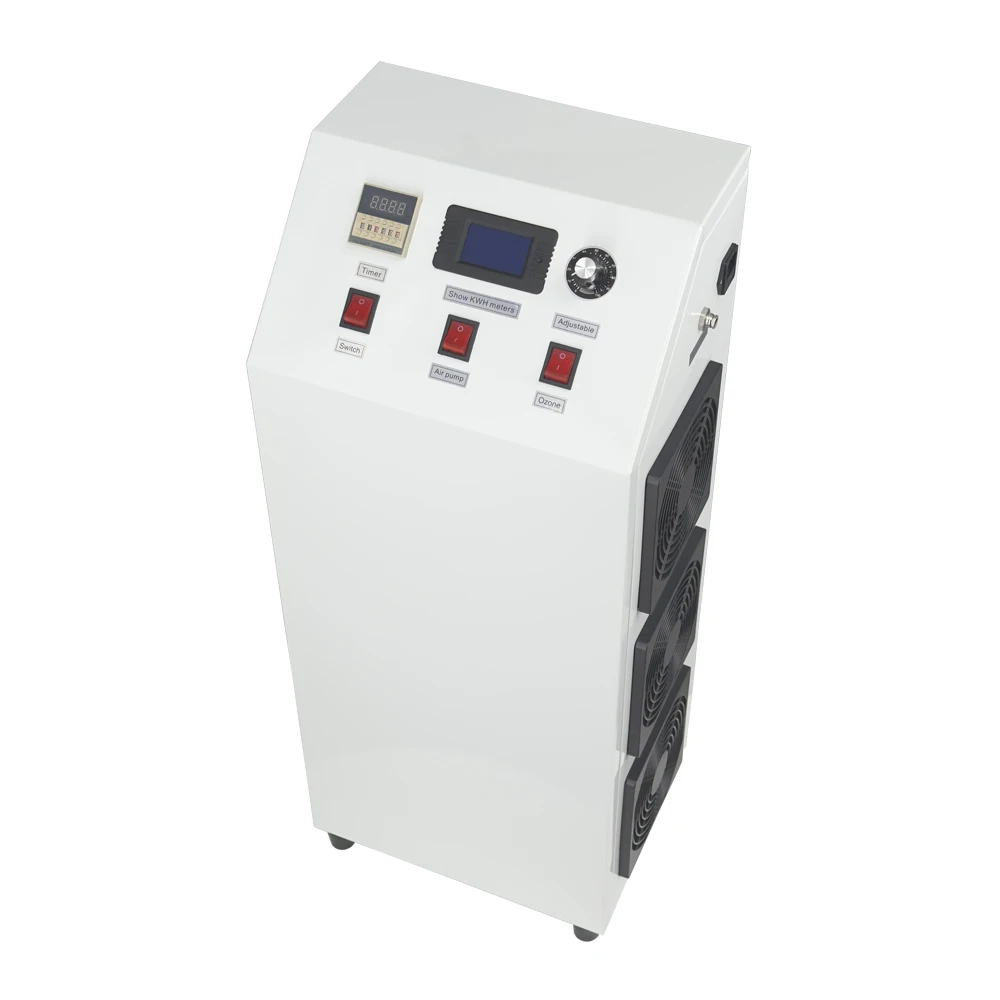

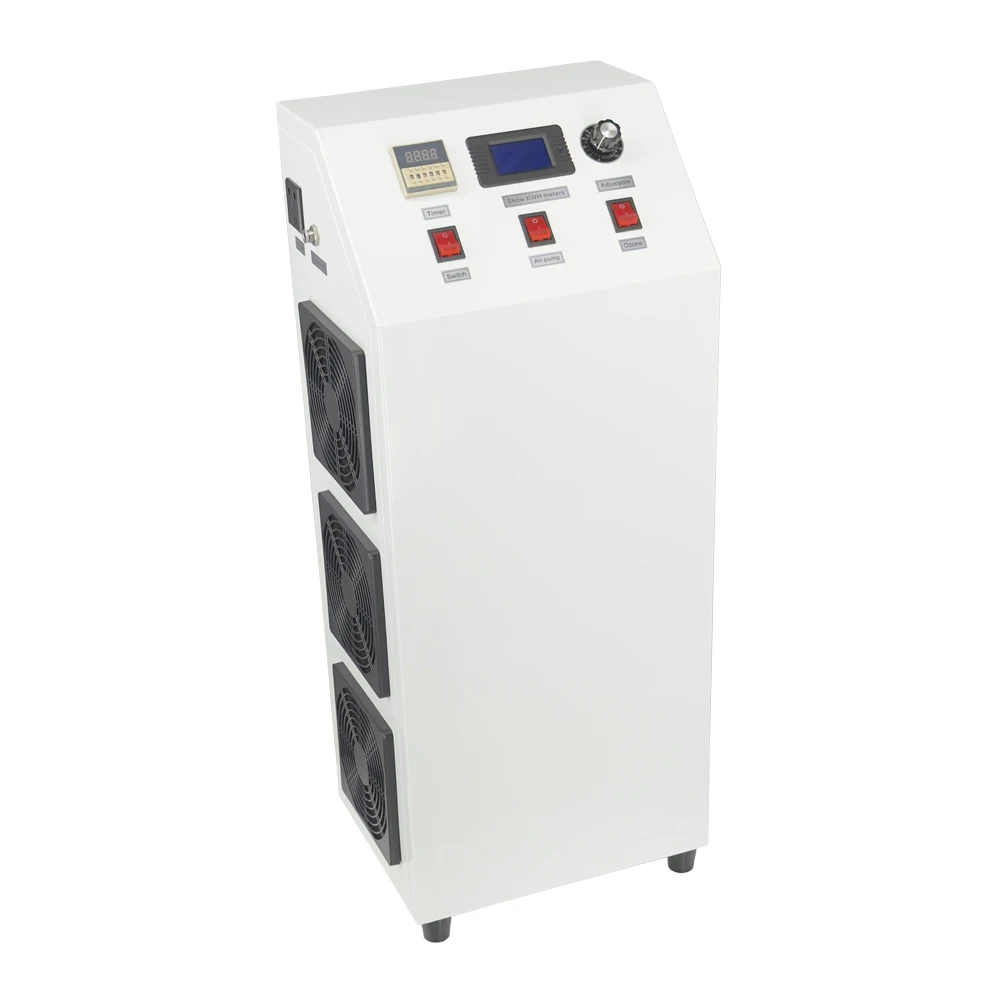

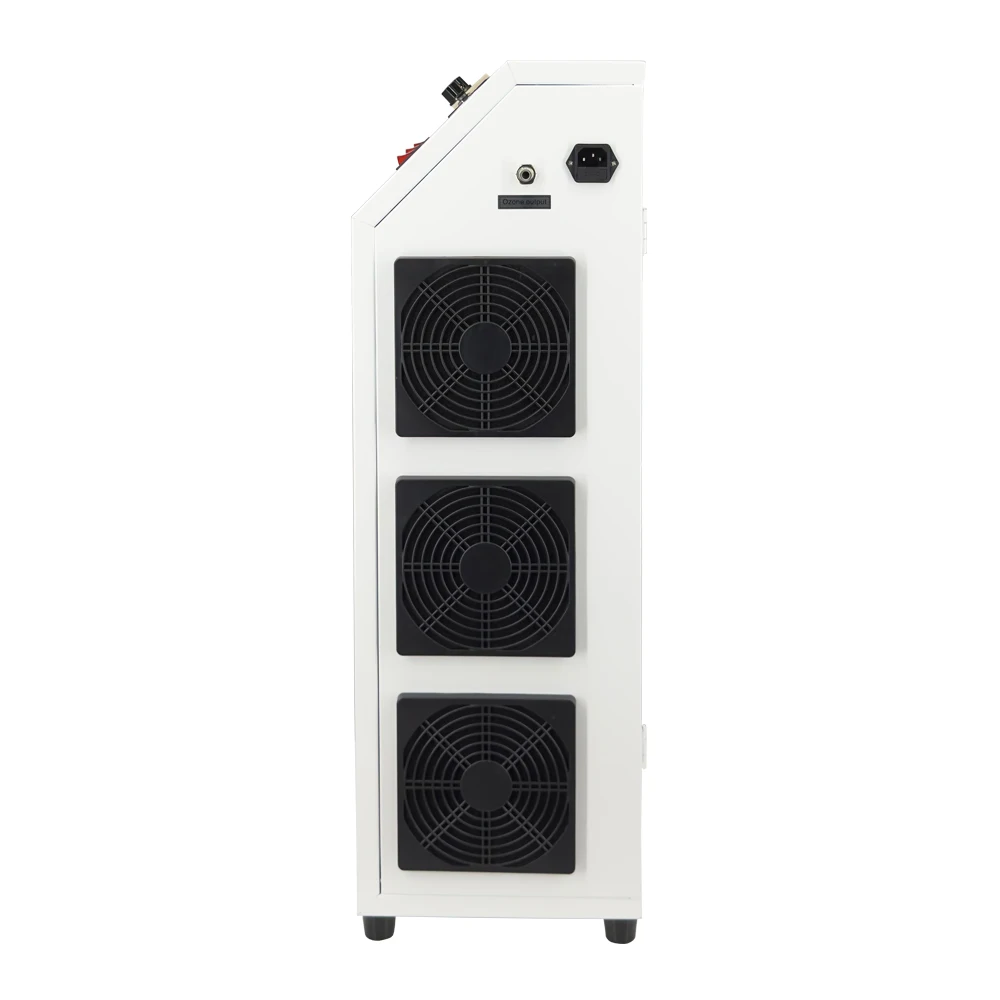

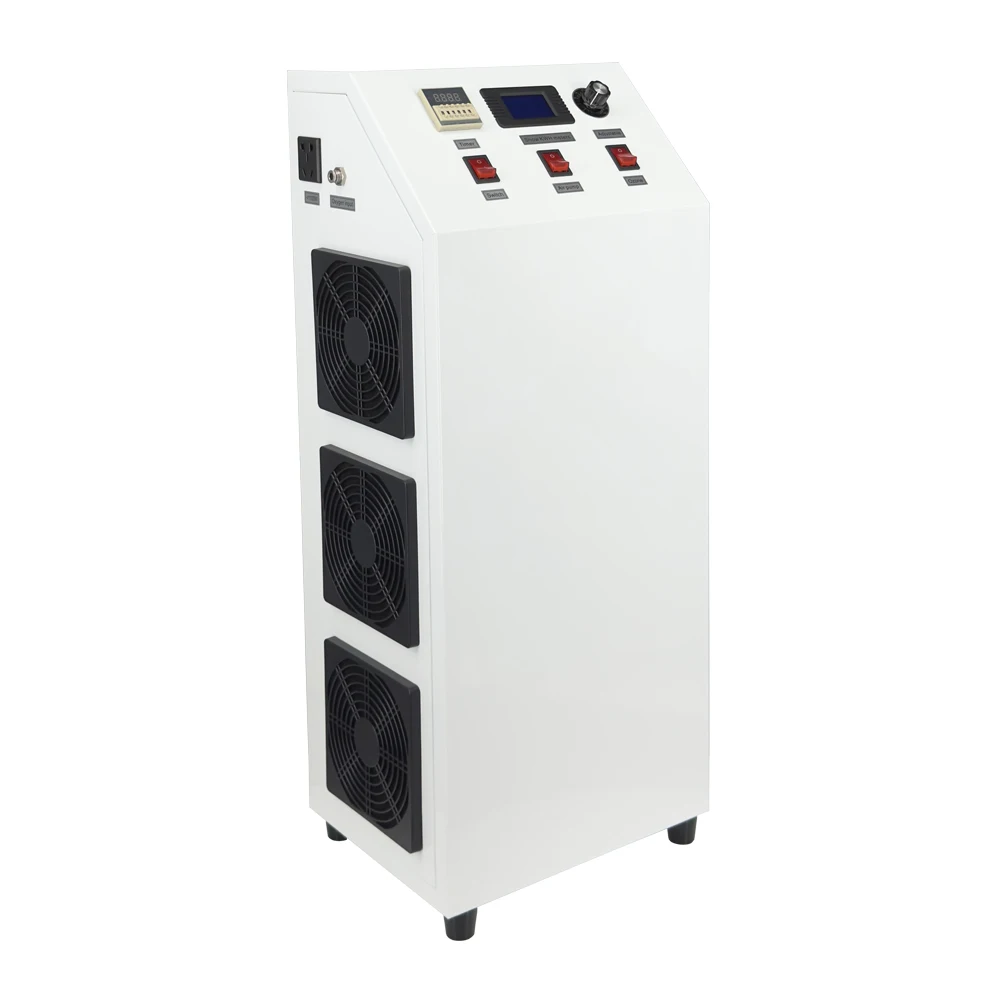

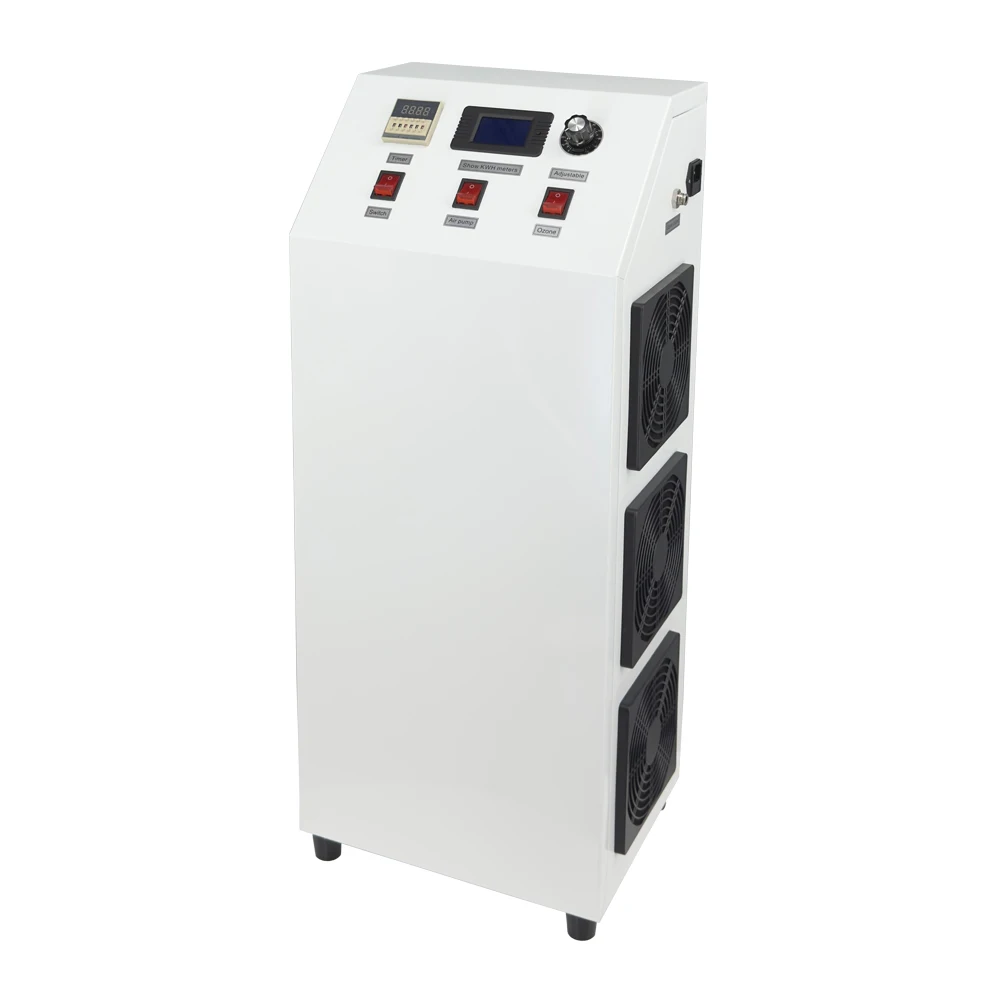

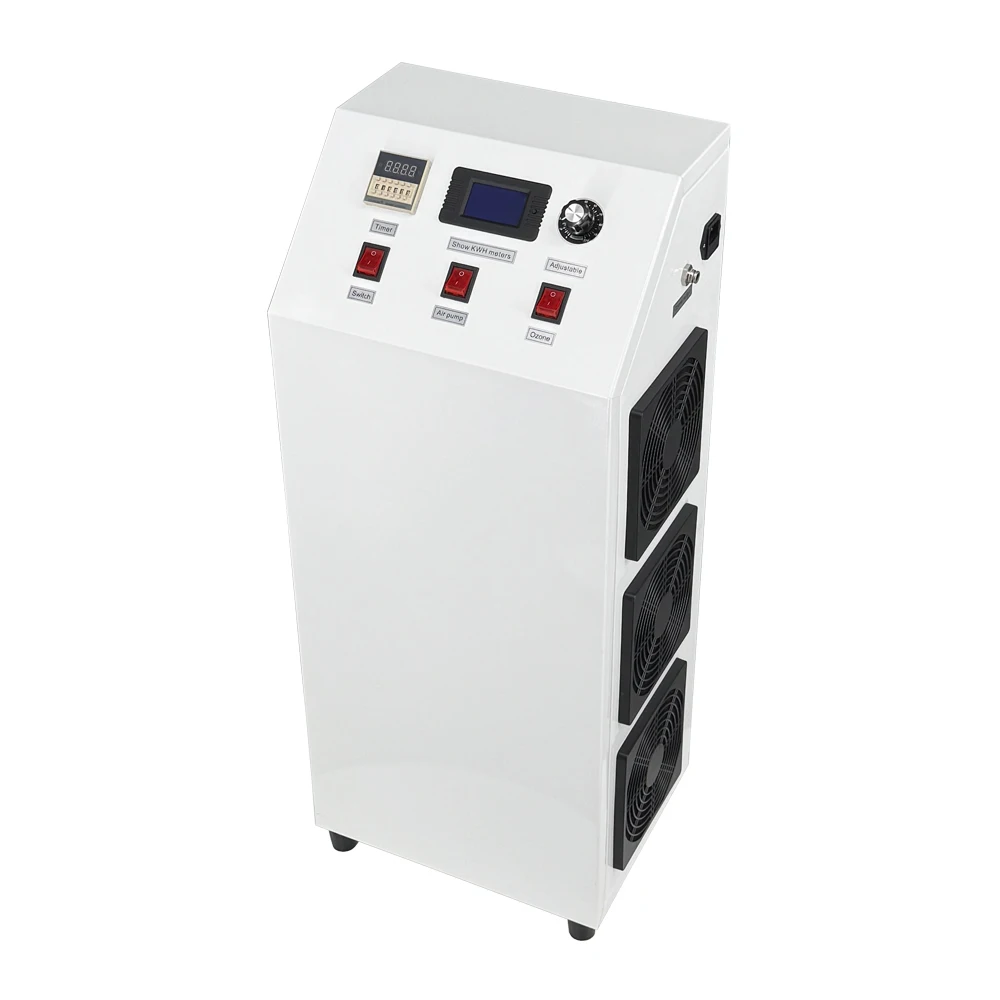

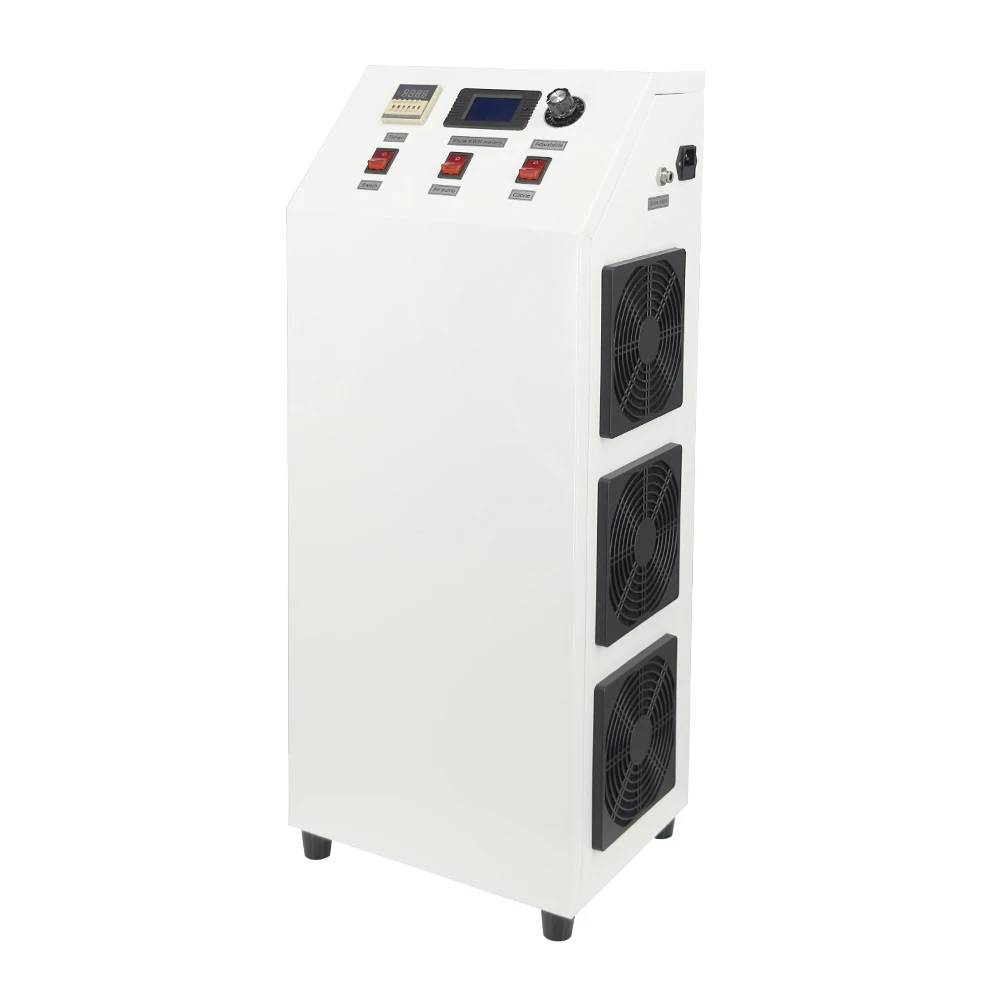

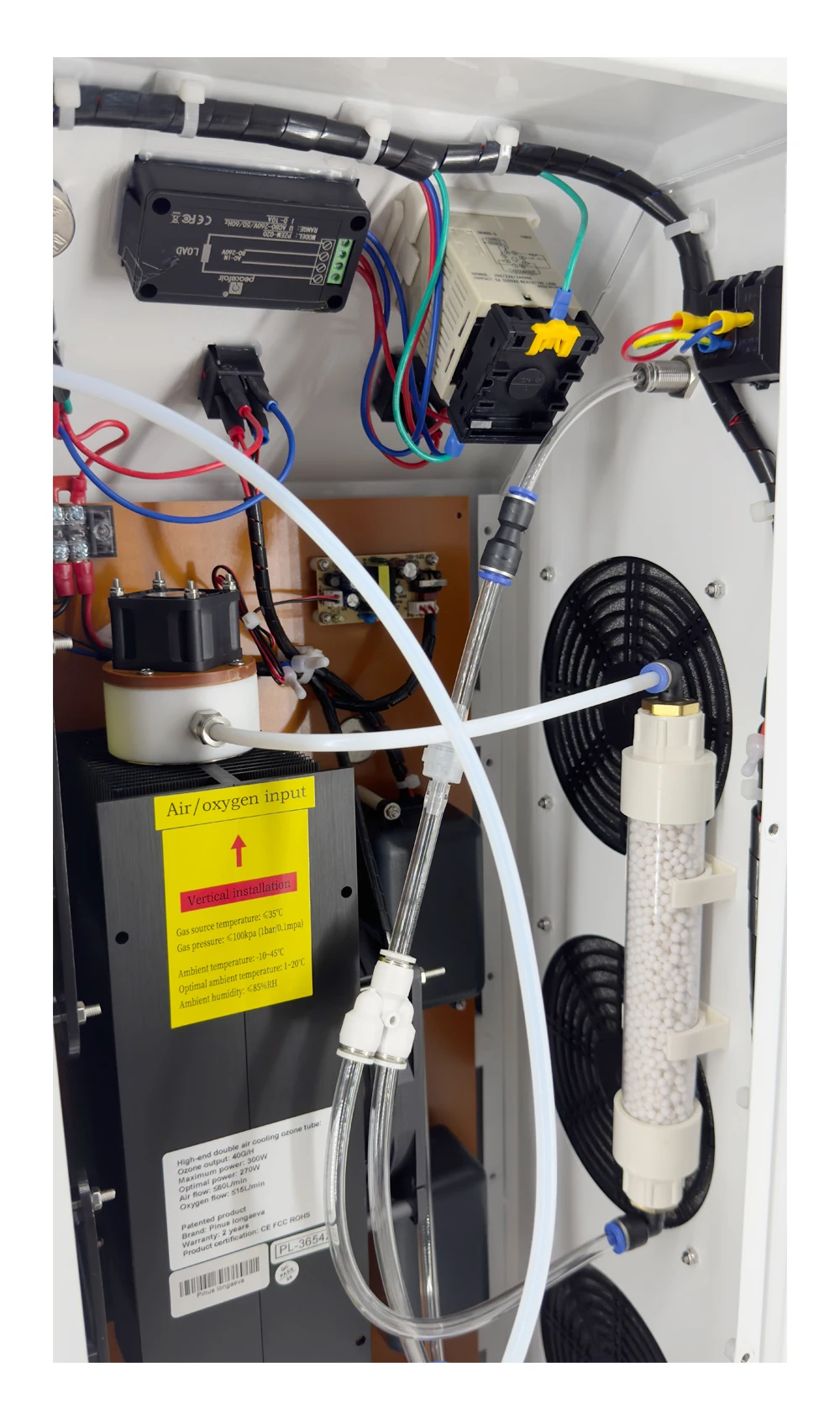

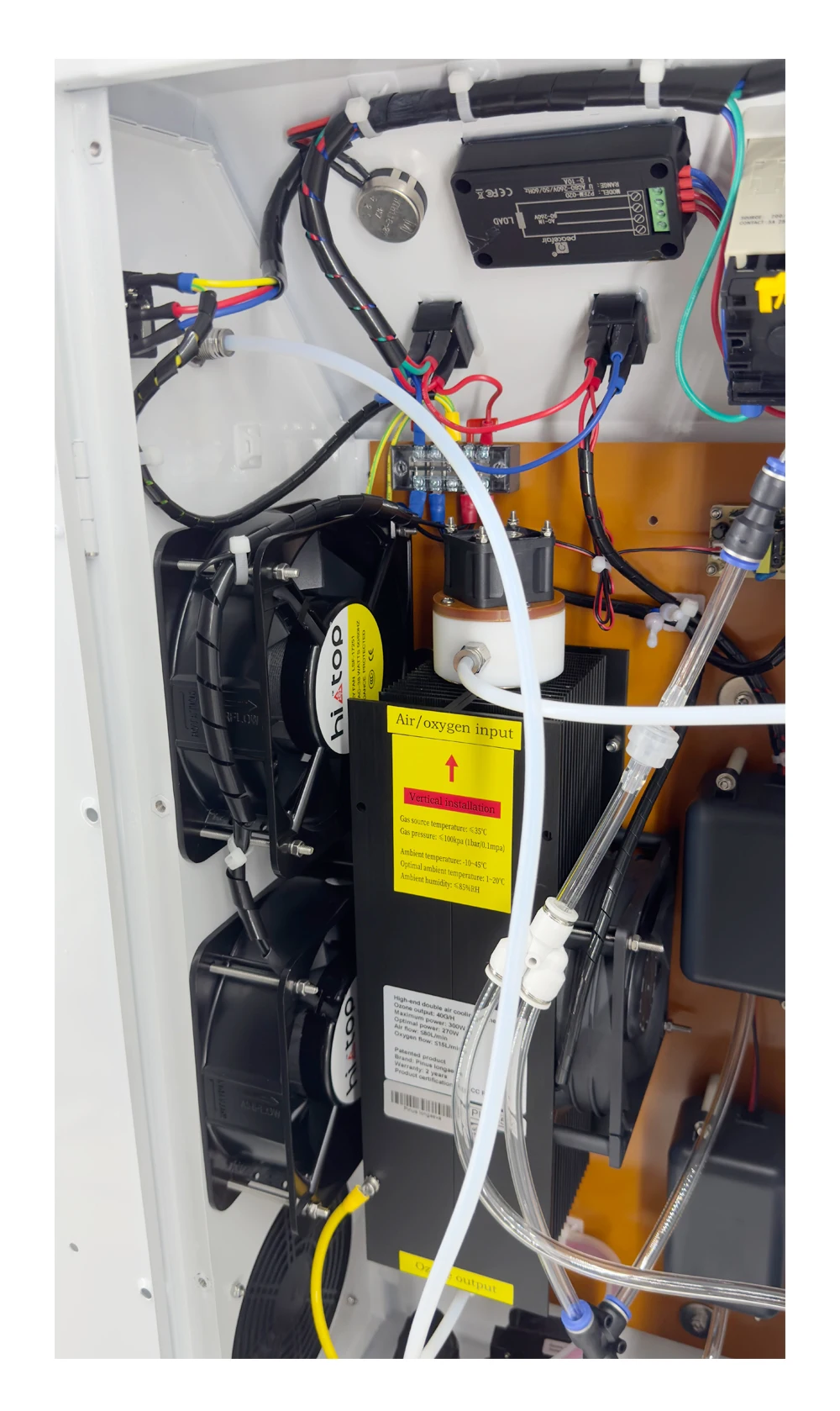

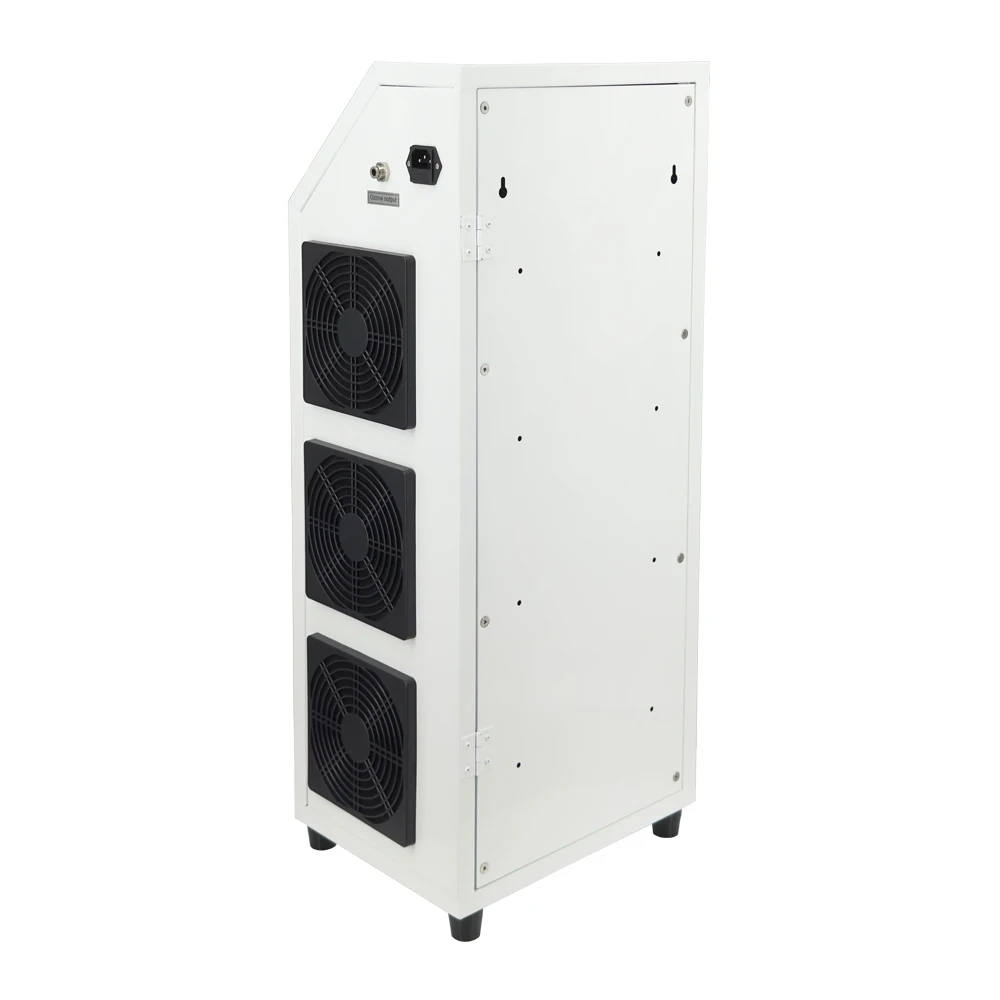

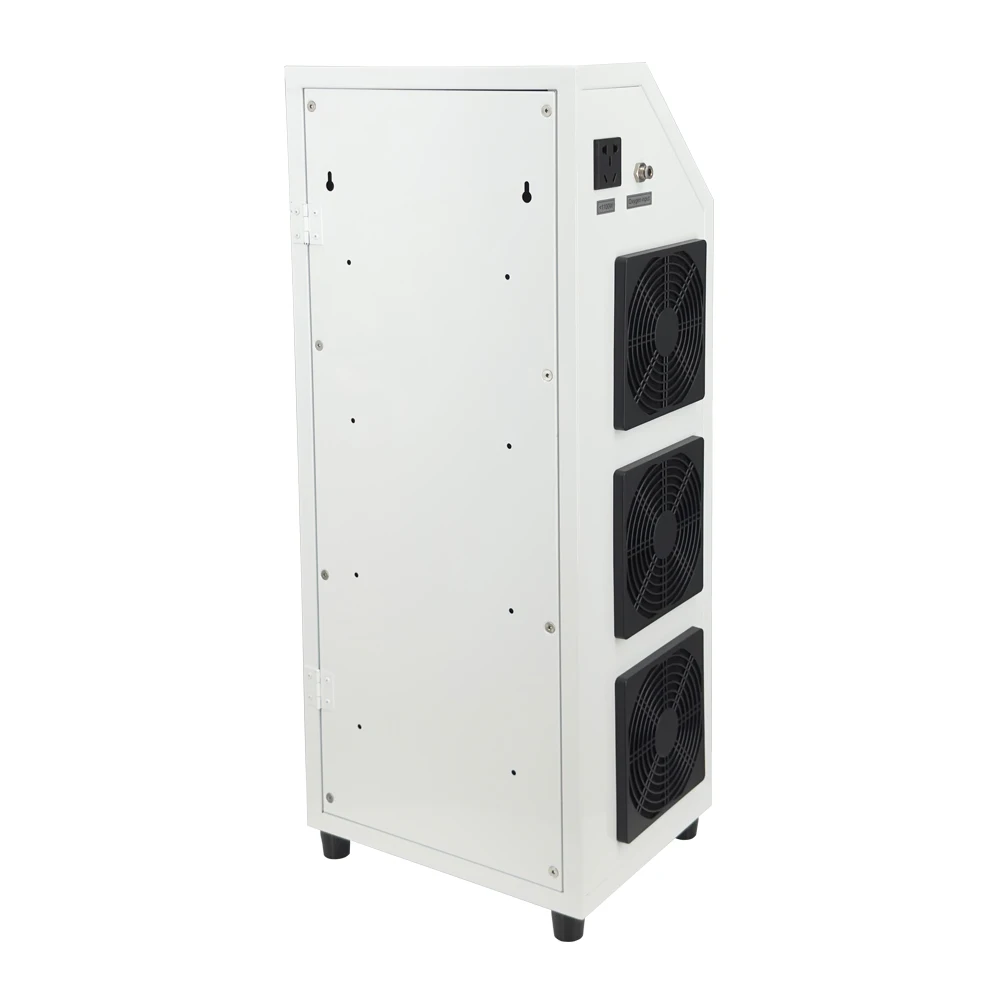

Product picture:Â (the picture below is:Â cycle timer 40g/h 40L/min)
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
